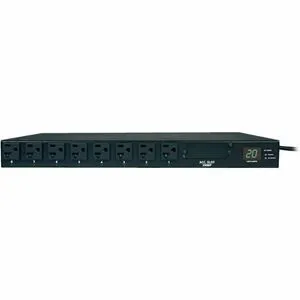

The Eaton Tripp Lite Series 1.9kW Single-Phase Local Metered Automatic Transfer Switch PDU is a vital solution for ensuring a reliable and uninterrupted power supply to your essential network devices. This Automatic Transfer Switch (ATS) is tailored for high-performance applications such as data centers and server rooms. With dual input capabilities and advanced power management features, this PDU guarantees that your critical equipment is safeguarded against power interruptions and fluctuations.
- Redundant Power Supply: The dual input cords provide connectivity to two separate power sources, ensuring continuous power availability. Should the primary source fail or become unstable, the ATS automatically transitions to the secondary source, keeping your devices operational.
- Hot-Swappable UPS Protection: When paired with a single uninterruptible power supply (UPS), this ATS allows for fault-tolerant hot-swappable UPS protection. Additionally, each input can be connected to its own UPS system for added reliability.
- Power Quality Monitoring: The built-in ATS processor continuously evaluates the power quality of both input sources. It prevents switching to the secondary source if it is inferior or unavailable compared to the primary source's quality, ensuring optimal performance.
- User-Friendly Interface: The front input LEDs provide clear visibility of power availability, allowing users to effortlessly monitor the status of both primary and secondary power sources at a glance.
- Compact and Versatile Design: Its 1U horizontal rackmount configuration allows the device to fit easily into standard server racks, making it a space-efficient solution for diverse power management needs.
Technical Details of the Eaton Tripp Lite Series 1.9kW ATS PDU
- Power Capacity: 1.9kW
- Phase: Single Phase
- Input Types: 2 x NEMA L5-20P / 5-20P inputs
- Output Types: 16 x 5-15/20R outlets
- Form Factor: 1U horizontal rackmount
- TAA Compliant
- Maximum Input Current: 20A
- Voltage Rating: 120V
How to Install the Eaton Tripp Lite ATS PDU
Installing the Eaton Tripp Lite Series 1.9kW Automatic Transfer Switch is straightforward. Follow these steps for proper installation:
- Preparation: Ensure that the power sources are turned off. Gather necessary tools, including a screwdriver and cable ties.
- Mounting: Secure the PDU in a 1U space within your standard server rack using the provided mounting brackets.
- Connect Input Cords: Attach the two input cords to the NEMA L5-20P/5-20P inputs, ensuring each is connected to a compatible power source (primary and secondary).
- Connect Outputs: Plug in your network devices to the 16 5-15/20R outlets on the front panel of the PDU.
- Power On: Turn on the power sources and monitor the front LED indicators to confirm that the primary power is available.
- Testing: Conduct a test by temporarily disconnecting the primary power source to ensure that the ATS switches seamlessly to the secondary source.
Frequently Asked Questions
- What happens if both power sources fail? The ATS is designed to switch to the secondary power source only when the primary source is unavailable or unstable. In case of a total failure of both sources, the connected devices will lose power.
- Can I use different types of UPS systems for each input? Yes, you can connect different UPS systems to each input. However, for optimal performance, it is advisable that the primary input be supported by a full-time sine wave UPS with zero transfer time.
- Is the Eaton Tripp Lite ATS PDU easy to monitor? Yes, the front panel features easy-to-read LED indicators that display the status of both the primary and secondary power sources, allowing for quick monitoring and management.
- Can this device be used in a home setting? While primarily designed for commercial use in data centers and server rooms, the Eaton Tripp Lite ATS PDU can also be utilized in home office environments where power redundancy is essential.
- What is the warranty on the Eaton Tripp Lite ATS PDU? The product typically comes with a manufacturer's warranty. For specific warranty details, please check the manufacturer’s website or your purchase documentation.
